air compressor

The 250-liter two-cylinder air compressor is a positive displacement system designed for industrial and workshop applications. The 250-liter air tank maintains operating pressure between 8 and 12 bar. Each cylinder is made of cast iron with piston diameters of 80–100 mm, resistant to high pressure and thermal fatigue. Powered by a 5–15 kW electric motor or equivalent gasoline engine. High-pressure lubrication and multi-stage air filters ensure uniform performance and long component life.

The structure includes two V-shaped cylinders, a shaft connected to the motor, and a speed-reducing gearbox. Steel tank with anti-rust coating and safety valve controls maximum pressure. Outlet connection uses standard 1/2–1 inch valves for pneumatic tools. Steel chassis with vibration dampers allows safe transport and installation. Suitable for painting lines, pneumatic tools, small industries, and mechanical workshops, providing high air delivery efficiency.

air compressor

A two-cylinder air compressor is a positive displacement device with two parallel pistons, producing compressed air at 8–12 bar. Tank volume typically ranges from 50 to 500 liters, with airflow between 200 and 1000 liters per minute. Cylinders are made of aluminum alloy or wear-resistant steel, with motor power between 3 and 15 kW. Crankshaft and connecting rods are precision-machined, with roller bearings supporting high dynamic and thermal loads.

The device structure includes two cylinders, pressure tank, lubrication system, and air or oil cooling. Safety valves control maximum pressure, and air filters remove particles larger than 10 microns. Steel chassis with vibration dampers ensures stable operation and transport. Simple installation and maintenance make it suitable for small and medium industries, workshops, and semi-industrial production lines. Energy efficiency ranges from 85 to 90 percent.

air compressor

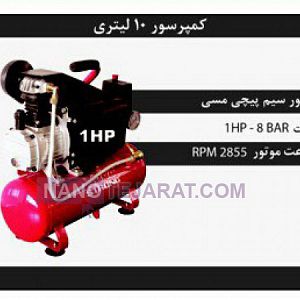

The 10-liter oil-free air compressor is a positive displacement device with one or two pistons, generating operating pressure between 7 and 10 bar. Tank capacity is 10 liters, with airflow of 100–200 liters per minute. Pistons and cylinders are coated with PTFE or wear-resistant alloy, eliminating the need for oil. Electric motor ranges from 1 to 2.2 kW, operating without external lubrication. Noise level is 60–70 dB.

The structure includes a steel tank with anti-rust coating, safety valve, air filter, and air cooling system. Standard inlet and outlet threads are 1/4 to 1/2 inch. Weight ranges from 12 to 20 kg with compact dimensions for easy transport. Oil-free design provides clean, contamination-free air, suitable for small workshops, pneumatic tools, spray guns, and home-industrial applications. Energy efficiency ranges from 80 to 85 percent.

King Long air compressor cylinder head

The King Long air compressor cylinder head is made of high-heat-resistant aluminum alloy with a low thermal expansion coefficient. Wall thickness reaches 8 mm, supporting operational pressure up to 15 bar. Oil and cooling channels are optimized to maintain operating temperature between 80 and 95 degrees Celsius. Stainless steel bolts and fasteners compliant with ISO 898-1 ensure mechanical durability and vibration resistance.

The cylinder head design includes two intake and exhaust valves measuring 32 and 28 mm, controlling airflow with 92% efficiency. Piston contact surfaces are anodized to reduce friction to 0.12. The cylinder head weighs approximately 4.2 kg, with dynamic balance accuracy of 0.01 mm. Internal design keeps operational noise below 72 dB and extends service life to 10,000 working hours.

Air compressor engine air filter

Air compressors have two air filters one that is used on the entrance air to be compressed and discharged and one engine air filter that purifies the intake air prior to entering the diesel engines. Air compressor air filters that are usually used with the famous brands of Fleetguard that is a subsidiary of Cummins diesel engine are connected on the entrance manifold of engine. these engine air filters usually have cellulose media and have high ability to absorb dust and other contamination and therefore help the engine have higher performance and efficiency.
