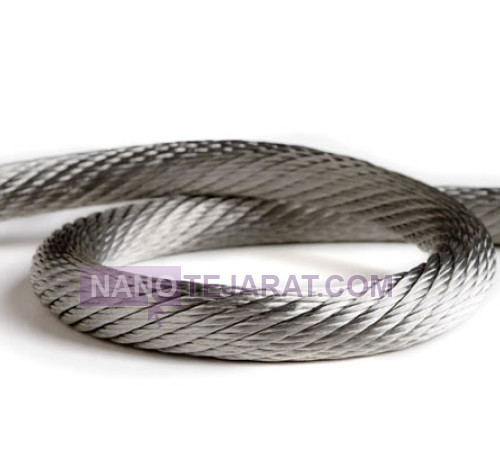

Non-rotating Wire Rope

Import, production and distribution of all kinds of towing wire in Kariz industrial equipment.

Netab tow wire sale
Sale of steel towing wire
Non rotating wire rope for sale
Selling Rotation Resistant Wire Rope
Sale of Netab compact towing wire
Sale of anti-wear towing wire
Sale of snakeskin towing rope
Selling netab 35*7 towing wire
Selling netab 7x19 towing wire
Sale of 7x35 tow rope
Sale of 7x19 tow wire
Sale of netab tower crane towing wire
Sale of crane towing wire
Mary Tavercrane leather towbar for sale
Sale of crane towing rope

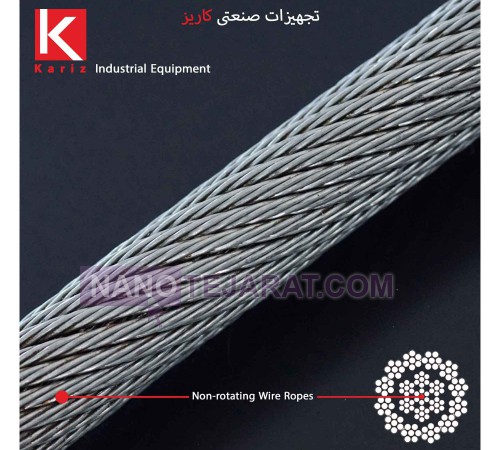

What is non-rotating/rotation resistant steel rope or snake skin?
The term "twist resistant steel rope" refers to a type of wire rope that is designed to resist the tendency to twist or twist under pressure. Twist resistant ropes are made of many layers of strands. Each layer is placed in the opposite direction of the next layer, so that the torque in different layers is superior to each other. The inherent nature of twist-resistant rope designs places certain limitations on their use and necessitates special handling requirements not seen in other types of rope.
Twist-resistant wire rope is designed to minimize rotation of the load during the lift. When lifting with other types of steel ropes, elongation and rotation are normal. This can cause the load to spin, possibly out of control, which is a serious safety issue. Therefore, torsion-resistant steel rope is essential for any application where a load is lifted by a single strand of rope.
Twist-resistant wire rope is created by twisting the outer layer of the rope in the opposite direction to the inner layers of the rope. When in tension, the opposing rotational forces cancel each other out.

What is the structure of netab wire ropes?
The common structure of netab towing wire is the weave of several strands in which 7 steel wires are used in each strand. This structure in the arrangement of the tow wire leads to the texture of two widely used structures for the netab tow wire, including the structure of 7x35 and 7x19.

What is the tensile strength of netab wire ropes?
Netabs tow wire is often in the highest category in terms of tensile strength among other tow wire structures, and it usually starts from 1960 Mpa and sometimes reaches 2160 MPa.
What is the main structural feature of netab wire ropes?
Netab wire ropes have a large number of threads or strands, which are made with a small number of wires in each of these threads.

What are the commonly used sizes of Netab wire ropes?
The commonly used sizes of netab tow wire are 14 mm, 16 mm, 18 mm, 20 mm, 22 mm and 24 mm.

What is the core of netab towbars?
Netab wire ropes have an all-steel structure, which includes their core, and their core is made of steel.

Is it possible to use a normal towing wire to work with equipment that requires a netted towing wire?
No, in any case, we must be aware of the consequences of this because it brings the following risks:
Strong twisting and even unfolding during load maneuvering
The rotation of the barge may go out of control
Reducing the minimum breaking load
The tow wire gets tired sooner

Is the property of resistance against the wire ropes of Natab the same in all types?
No, the rotational and non-rotational resistance properties of the tow wire increase with the number of outer strands and the number of layers of strands in the section.
Therefore, a tow wire with at least 14 outer strands and at least 3 layers is a very good non-twisting rope.
Wire ropes with 11-13 outer strands and 2 layers of strands have good non-rotating properties.
Wire ropes with 8-10 outer strands and 2 layers of strands have medium non-rotating properties.
According to statistics, a netted towline with 2 layers of strands and one free end produces between 55 and 75% of the minimum breaking load force, while 3 layers of strands produce between 95 and 100% of this force. This parameter is called rotational loss coefficient.

Important note: For tower cranes and other larger cranes, it is recommended to use 3-layer wire ropes.
What is anti-wear towing wire?
Anti-wear or compacted towing wire is called a standard rope that has gone through a special process. The rope is either passed through a mold or rollers on a special machine to compress the rope. Standard rope strands are compressed during the manufacturing process. This process causes the inner threads, the outer threads, or both to be compressed. A standard plain compression rope has a normal inner core but compressed outer strands. Compression smoothes the surface and increases the contact area of all threads.
Standard rope strands are round, but after the compression process, the wires and strands are flattened, resulting in a much smoother rope with a smaller diameter.

Features of anti-wear wire ropes:
Increasing the wear resistance of wires
Smoother contact surface than other ropes
Increased tensile strength and lateral pressure strength
Increases the metal cross-sectional area
Less pressure on grooves and drums
Less tired
Low deformation
High load capacity

Application:
Tow wire of jib crane
Towing wire of overhead crane
Marine crane towing wire
Mining tugs
Fishing and fishing industry towing wire

The most important and common structures of netab steel rope towing wire:
Towing wire 35*7 Netab
Towing wire 19*7 Netab

What is the packaging and shipping of Netab towing wire?
Netabs wire ropes are mainly offered to dear customers in 1000 meter wooden spools. Of course, this collection has the possibility of sending with the sizes you want, from one meter to several thousand meters.
The shipping method is that after receiving the official order and completing the financial affairs, the goods are delivered to the customers request either at the warehouse in Tehran, or to send to the cities, to reliable carriers or intercity terminals, including A bus or a ride will be sent according to the customers request.
