Excavating wire rope

Import, production and sale of drilling wire
Sale of oil well drilling tow wire
Sale of water well drilling tow wire
Sale of round left drilling tow wire
Sale of tow wire 22 left round
Sale of tow wire 24 left round
Sale of 6*19 hemp wire
Sale of 6x19 drilling wire
Sale of tow wire for drilling hemp seeds
Sale of round left hemp seed tow wire

What is a drill string?

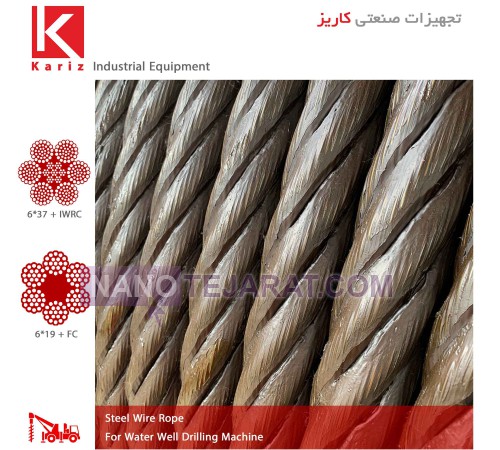

The main structure used in steel rope or towing wire in oil and water well drilling operations is in the form of 6 strands, each of these 6 strands consists of 19 steel wires twisted together. Strands are spun around a core, which can be made of steel, natural hemp, or PP polymer fibers. Weaving these 19 strands of wire next to each other in such a way that the final tow wire is ready to be used in drilling operations, it can be in the form of a standard weave or a flood weave, which we will discuss in the following explanations.

What are the common structures in drilling wire rope?

Towing wire with standard structure:
The structure called "standard" is based on wires with the same diameter in each strand. Probably the most common example is a steel wire in the middle surrounded by six wires of the same diameter.
A string of 7 strings written face to face: 1-6

Tow wire with Seale seal structure S:
The flood structure has two layers of wires around a central wire, the number of wires in each layer is the same, but the size of the wires in the inner layer is different from the size of the wires in the outer layer. All the wires in each layer have the same diameter, and the string is designed so that the outer wires, which are larger, are placed in the space between the inner wires, which are smaller.
19 Seale: 1-9-9 strand
The most widely used and durable type of tow wire that provides the best performance is the flood structure tow wire.

What is the core of the tow wire in the drilling wire?
As mentioned, the core of drilling wire ropes is divided into three types: steel, hemp and polypropylene.
Of course, according to the soil and water conditions in Iran, as well as the existing drilling machines, the drilling wire with hemp core or polypropylene is more widely used than the wire with steel core.

What are the common sizes of drilling wire ropes?
Wire ropes suitable for drilling operations start with a diameter of 16 mm and continue with diameters of 18 mm, 20 mm, 22 mm and 24 mm.
We provide a wide range of wire ropes to be used according to the type of drilling machine and the conditions of the region and land.
be made The most common sizes of heli-drilling towing wire are 22 mm and 24 mm.

What is the direction of the steel strings in the drilling wire?
The direction of circulation is chosen according to the type of operation and the type of drilling machine, as in the other cases mentioned. Of course, the most widely used type of wire ropes in drilling operations are round left wire ropes.

The three important features that the wire ropes used in drilling operations must have are as follows:
Good flexibility, high tensile strength and the most important feature is high friction wear resistance. Drilling wire ropes are constantly wearing and coming into contact with all kinds of rocks and different types of soil, so in order to maintain the health and long life of the wire, we need a grade of tow wire that shows the best performance in these conditions, from Therefore, the required tensile strength of these wire ropes is 1770 N/mm2. In some drilling operations, we need high flexibility, for this reason we use ropes with hemp core, and in operations where high tensile strength is considered, steel core ropes are a suitable option. Since the drilling wire ropes are in contact with water and moisture, galvanized wires are used in the construction of the wire rope to increase the life of this type of steel rope.

How is the packaging and shipping?
Drilling wire ropes are mainly offered to dear customers in 300 meter wooden spools and 1000 meter wooden spools. Of course, this collection has the possibility of sending with the sizes you want, from one meter to several thousand meters.
The shipping method is that after receiving the official order and completing the financial affairs, the goods are delivered to the customers request either at the warehouse in Tehran, or to send to the cities, to reliable carriers or intercity terminals, including A bus or a ride will be sent according to the customers request.

Kariz industrial equipment:
Kariz industrial equipment, which has placed transparency, quality, raising the level of technical information and preserving the environment at the forefront of all its affairs in the field of providing lifting and cargo moving services, is ready to provide high-quality European, East Asian and Iranian products, all under the standard International standards ASTM - DIN - GOST - JIS have been produced and inspected to the community active in the drilling industry.
It is hoped that we will take a positive step in the development of the industry of this region by offering products with quality.
